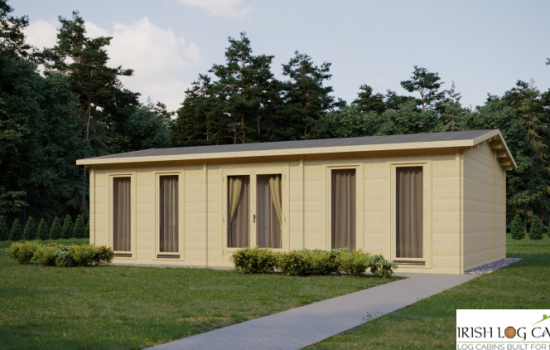

Woodford 1 Bed Log Cabin 8.0m x 5.0m

The Woodford 1 bed cabin is a perfect starter for single living or a remarkable twin office cabin. This cabin can have various different internal layouts and wall adjustments to suite any requirement. It comes standard with large 820 x 1890 tilt and turn windows to the front which all offer multi point locking and residential quality the French doors open out and also boast multi point locking with external aluminium drip seals. the high beamed ceiling give it the feeling of space and make it ideal for many uses.

All our Flat pack Kits come complete with All the timber required to build this cabin and are inclusive of 19mm Tongue & Groove flooring, 28mm flooring available as an added option. The roof Sheeting not included

The base of a log cabin is the most important part of any log cabin build and should be a flat area that is minimum of 2″ above the ground and level. A concrete slab Is preferable to avoid movement. Damp course in the form of heavy gauge plastic will be used before the installation of your cabin creating a vapour barrier beneath.

Customer Foundation

Customers guarantees level foundation to our specifications unless you have pre-arranged with us to install the base for you. Please contact us to get specifications for your log cabin base.

Flat Pack includes:

Brand New Layout option En-suite / built in wardrobes x2
45mm solid walls
Pressure treated floor bearers 51x100mm
19mm TG floor boards
19mm TG roof boards
Double glazed Premium quality wooden living type doors toughened safety glass
Double glazed Premium Plus quality Tilt & Turn wooden living type windows toughened safety glass
Fixings & Screw Pack included
Cabin Drawings Assembly Booklet included
Free floor insulation
Black roof shingle bitumen tiles
Roof damp proof underlay felt
Available space required minimum of 600mm around the cabin for building and maintenance

Fully Built includes:

Assembly by our professional log cabin builder team

45mm solid walls

Pressure treated floor bearers 51x100mm perimeter floor bearers 100x100mm

Damp proof membranes in floor , roof & walls

19mm TG floor boards

19mm TG roof boards

Double glazed Premium quality wooden living type doors toughened safety glass

Double glazed Premium Plus quality Tilt & Turn wooden living type windows toughened safety glass

100mm Floor insulation

100mm Roof insulation

Exterior Ventilated Cavity Wall System Fitted (Total exterior wall thickness 189mm )

100mm Wall insulation inside Exterior wall with Breathable Membranes & Ventilated Air cavity to ililinate Dampness

Pressure treated ship-lap exterior cladding (IMPORTED Kiln Dried slow grown siberian Spruce)

Steel roof tile effect

PVC Black Gutters and downpipes

Available space required minimum of 600mm around the cabin for building and maintenance

Not Included: Groundworks, Concrete slab, Electrics, Plumbing, Heating, Kitchen, Painting.
External Width: 8 m (26′ 3”)
External Depth: 5 m (16′ 4”)
Internal Eaves Height: 2,3 m (7′ 6”)
Ridge height: 2,97 m (9′ 8”)
Wall thickness: 70 mm
Internal Area: 38 m²
Roof: Ca 52 m² 19mm TGV
Floor: 28 mm

Door Opening Size: External doors 1,43 x 1,95
Door style Double Glazed Multi point locking
Number of windows: 4 windows 0,82 x 1,89 m. / 2 1040 x 1420mm Tilt Turn Multi locking
Glazing Material: (Double Glazed)
Material: Slow grown Nordic spruce, (Kiln Dried)

Premium windows & doors have 24mm Argon gas filled toughened safety glazing, thicker frame & premium locking mechanisms. All our windows and doors carry a 10 year warranty.

Wooden Frames come as standard and PVC is available also. Below you'll find our wooden frame and PVC colours.
